Nouveauté

Lock-N-Load Pro Wall Mount

$55.00

Designed for the Lock-N-Load PRO, PRO Mini, and PRO HD transport systems
Stores the LNL PRO arms when not in use, same slide-and-lock motion as the floor plate

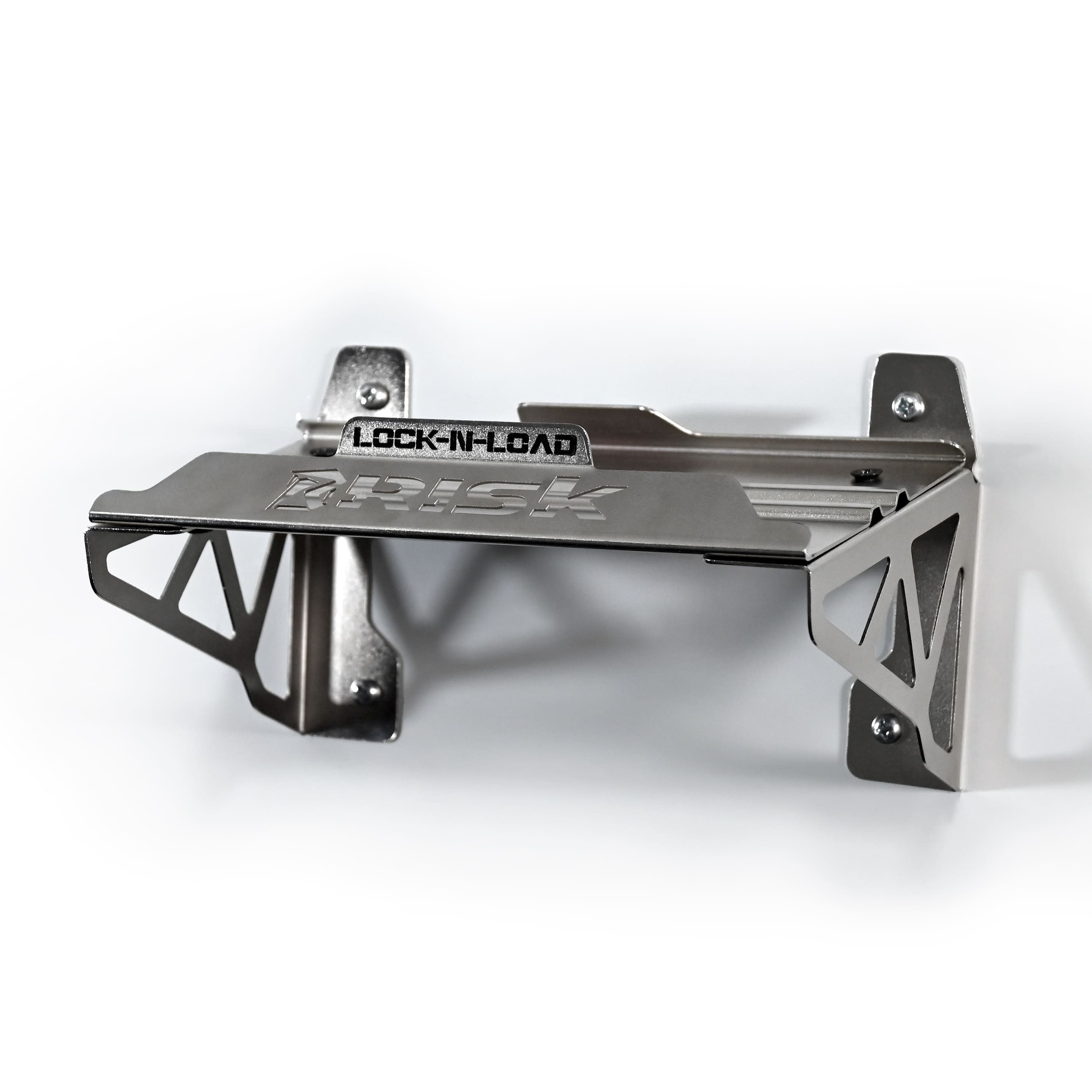

Three-piece assembled system (1 shelf + 2 support brackets)

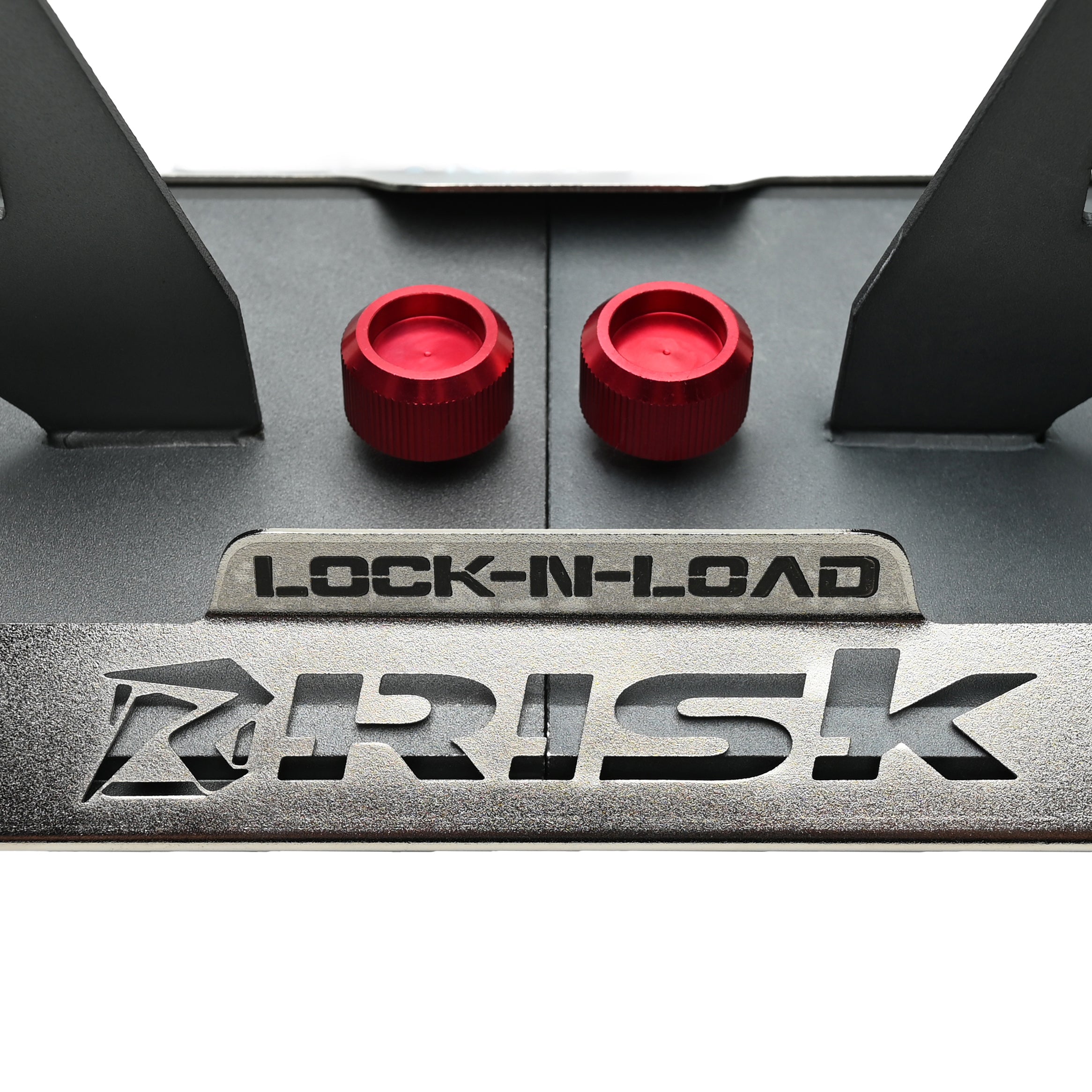

Arms lock securely onto the mount using the existing arm lock pins
Works on garage walls, trailer walls, and any solid surface
PVC-coated steel construction
Silver finish

SKU #: 12653
Product name: Lock-N-Load PRO Wall Mount
Color: Silver
Package dimensions: 10.00" x 5.75" x 3.00"
Package weight: 1.70 lbs
Compatible with: Lock-N-Load PRO, PRO Mini, PRO HD
Not compatible with: Lock-N-Load strapless systems (non-Pro versions)

(3 piece) Wall Mount System: 1 shelf + 2 support brackets
(4) Wood Screws
(4) 6x12mm Machine Screws/Bolts
(4) 6mm Lock Nuts
Installation Instructions

Step 1: Choose your mounting location. Keep in mind that the arms will project from the wall at a slight angle. Select a height that clears bike handlebars, foreheads, and other equipment.
Step 2: Assemble the 3-piece mount system (1 shelf + 2 support brackets) per the included diagram.
Step 3: Mark screw holes on the wall, use a level to confirm horizontal, drill pilot holes, and secure the mount into a solid surface.
Step 4: Slide your LNL PRO arms onto the mount track, same inward motion as the floor mounting plate. Lock them in place using the arm lock pins.

Pinch point warning: Keep hands and fingers clear while sliding Lock-N-Load PRO arms onto the wall mount.
Always mount to a solid, stable surface.
Read all instructions thoroughly before installing.
An improperly mounted system could cause the unit to fall from the wall and result in damage or injury.
You are responsible for your own installation integrity.
Keep out of reach of children.

Off The Floor Plate. On The Wall. Out Of The Way.

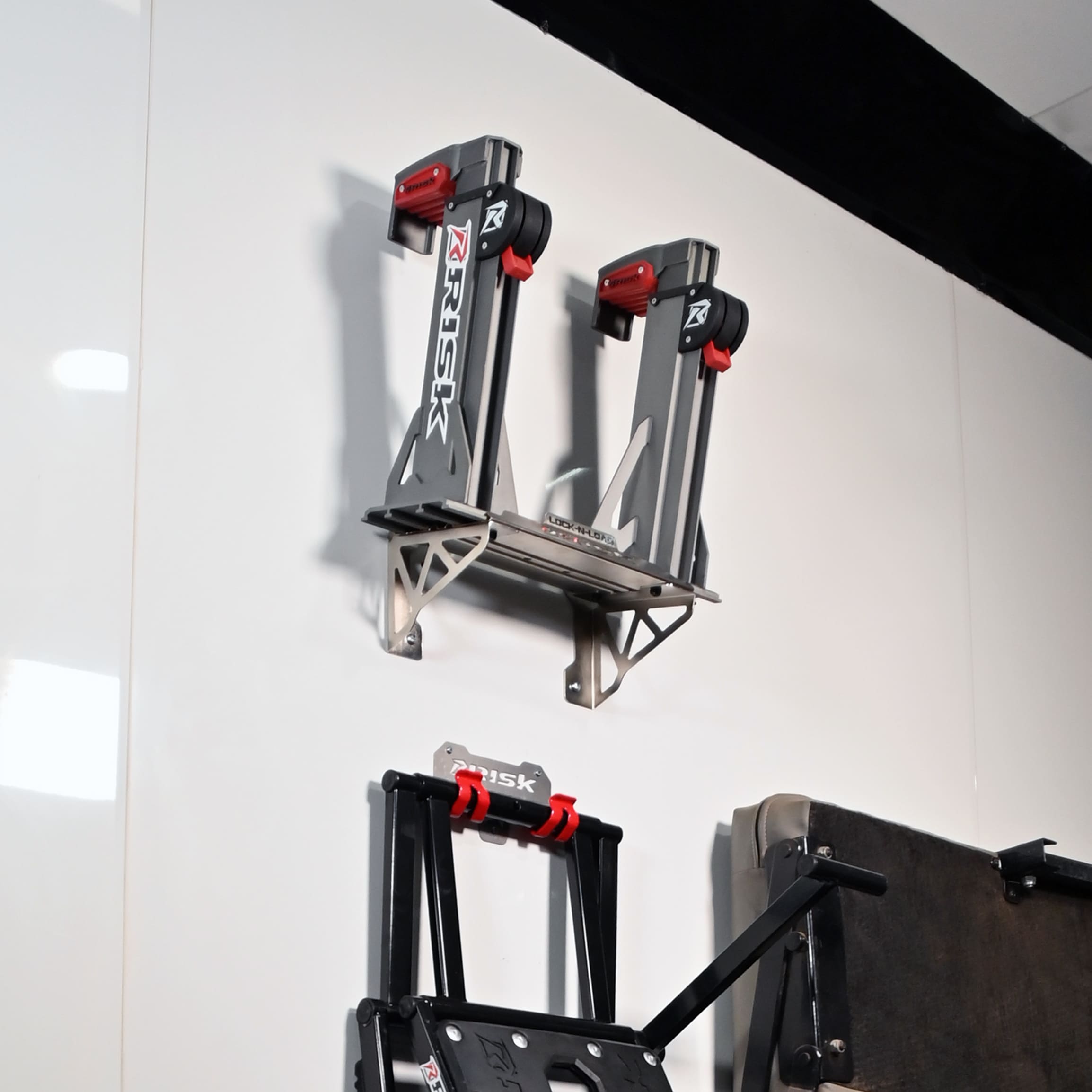

When the trailer is empty, your Lock-N-Load PRO arms still need somewhere to go. This wall mount gives them a home. Pull the arms off the floor plate, slide them onto the wall mount the exact same way, lock them in with the same pins, and you're done. No learning curve. No extra hardware. Just clean storage until the next ride.

From The Box To The Wall

Step 1: Choose Your Spot

Pick a location that clears bike handlebars, foreheads, and other equipment. The arms will project from the wall at a slight angle.

Step 2: Assemble The Mount

Bolt the 3-piece system together (1 shelf plus 2 support brackets) following the included diagram.

Step 3: Level & Secure

Mark your holes, confirm level, drill pilot holes, and fasten the mount to a solid surface.

Step 4: Slide & Lock

Slide your LNL PRO arms onto the mount track, same inward motion as the floor plate. Lock them in with the arm lock pins.

Watch It Install

You Already Know How To Use It

The arms slide onto this wall mount the exact same way they slide onto the floor mounting plate. Slide them inward to your desired position, then lock them in with the arm lock pins. If you already own a Lock-N-Load PRO, there is nothing new to learn.

Pull the arms off the floor plate after a haul. Slide them onto the wall mount. Done. The floor plate stays installed and stays low-profile until you need it again.

Fits The Whole LNL PRO Family

The Lock-N-Load PRO Wall Mount is compatible with the Lock-N-Load PRO, PRO Mini, and PRO HD transport systems.

It is not compatible with the original Lock-N-Load strapless systems (non-Pro versions). If you are unsure which system you own, check the model name on your floor mounting plate.

What's Included

(3 Piece) Wall Mount System • (4) Wood Screws • (4) Machine Screws/Bolts • (4) Lock Nuts • Installation Instructions

The Systems This Mount Is Built For

The Lock-N-Load PRO Wall Mount works with all three PRO transport systems.

Lock-N-Load PRO

Lock-N-Load PRO Mini

Lock-N-Load PRO HD

Frequently Asked Questions

▼Which Lock-N-Load systems does this work with?: The Lock-N-Load PRO Wall Mount is compatible with the Lock-N-Load PRO, PRO Mini, and PRO HD transport systems. It is not compatible with the original Lock-N-Load strapless systems (non-Pro versions).
◄Do I need any special tools or hardware?: All mounting hardware is included: wood screws, machine screws, and lock nuts. You will need a drill, a level, and a screwdriver or driver bit. Mount only to solid, stable surfaces.
◄Does the floor mounting plate stay installed when I use the wall mount?: Yes. The floor plate stays in place. You pull the arms off the floor plate and slide them onto the wall mount. When you are ready to haul again, slide the arms back onto the floor plate and lock them in.
